Titanium tube is widely used in demanding industrial applications where corrosion resistance, high strength, low weight, and long-term reliability are required. For CNC machining manufacturers, titanium tube can also serve as an important starting material for producing precision components, fluid-handling parts, aerospace components, hydraulic tubes, medical components, and other custom-machined titanium parts.

Unlike titanium plate, titanium tube is already formed into a hollow structure. This means that its inner diameter, wall thickness, surface condition, straightness, and residual stress can directly affect subsequent machining and fabrication processes.

Titanium tubes are generally divided into commercially pure titanium tubes (TA series) and titanium alloy tubes (TC series). Seamless titanium tubes, welded titanium tubes, and precision titanium capillary tubes also have significantly different manufacturing processes and application characteristics.

For Titanium CNC Machining, selecting the appropriate tube material is only the first step. Cutting, bending, welding, surface treatment, workholding, dimensional inspection, and internal-surface protection must also be considered.

This article explains the major titanium tube types, grades, standards, manufacturing processes, surface treatments, processing requirements, inspection considerations, and common material-selection issues encountered when manufacturing titanium components.

1. What Is Titanium Tube?

Titanium tube is a hollow titanium product manufactured from titanium billets or titanium alloy materials through processes such as extrusion, piercing, cold drawing, cold rolling, or welding.

Unlike titanium plate, titanium tube already has an internal passage. This makes it particularly useful for applications involving:

• Fluid transportation

• Heat exchange

• Hydraulic systems

• Chemical processing

• Marine systems

• Medical fluid systems

• Aerospace structures

• Precision mechanical components

From the perspective of Titanium Machining, tube geometry creates additional manufacturing considerations because the component contains both an external surface and an internal surface.

Important parameters include:

• Outside diameter

• Inside diameter

• Wall thickness

• Concentricity

• Straightness

• Internal surface roughness

• External surface condition

2. Two Main Titanium Tube Material Systems

Titanium tubes can broadly be divided into two material systems: commercially pure titanium tubes and titanium alloy tubes.

Commercially Pure Titanium Tube

TA-series titanium tubes are primarily selected when corrosion resistance is the main requirement.

Typical applications include:

• Chemical fluid systems

• Seawater systems

• Heat exchangers

• Environmental equipment

• Electroplating systems

• Medical fluid systems

Titanium Alloy Tube

TC-series tubes are selected when higher mechanical strength and structural performance are required.

They can be used for:

• High-pressure hydraulic systems

• Aerospace hydraulic tubing

• Lightweight structural tubes

• High-strength mechanical components

However, a high-strength titanium alloy should not automatically replace commercially pure titanium in corrosive environments.

3. Titanium Tube Standards and Common Grades

Material standards are particularly important when titanium tubes are used for critical components.

Common standards include:

These standards may define requirements related to:

• Chemical composition

• Dimensional tolerances

• Wall thickness

• Surface quality

• Hydrostatic testing

• Gas-tightness testing

• Mechanical properties

For CNC machining projects, the material certificate should be checked before machining begins to ensure that the supplied material corresponds to the engineering specification.

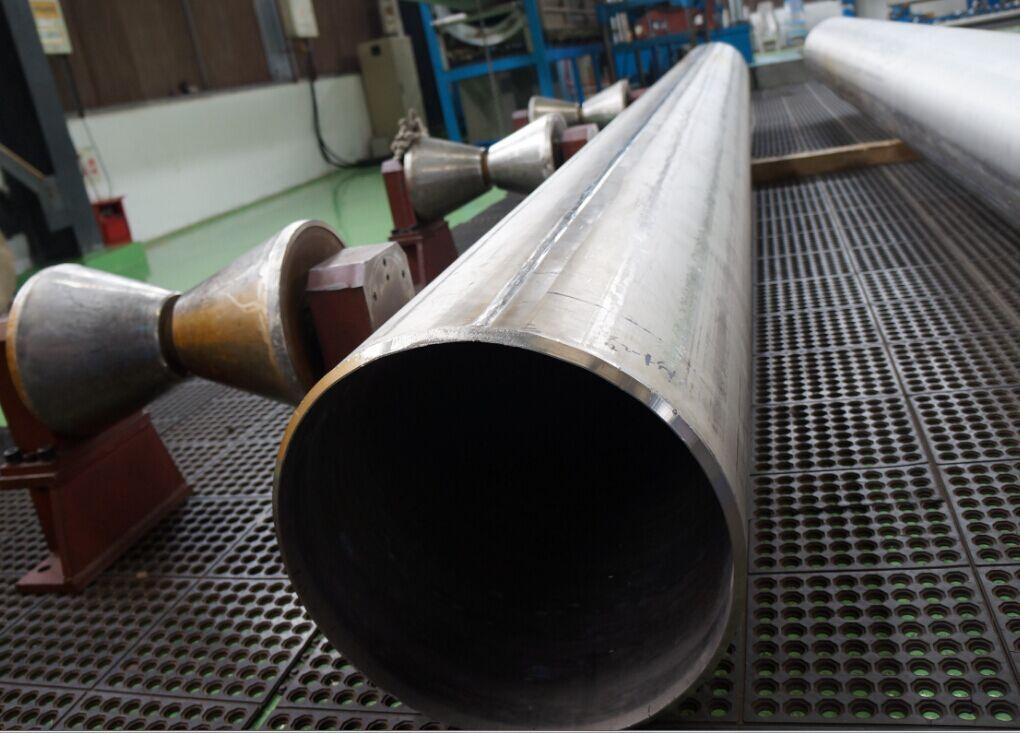

4. Seamless Titanium Tube vs. Welded Titanium Tube vs. Titanium Capillary Tube

One of the most important distinctions in titanium tube manufacturing is the production method.

Seamless Titanium Tube

A seamless titanium tube is manufactured without a longitudinal weld seam.

The typical manufacturing sequence is:

Titanium Ingot → Forged Billet → Piercing/Extrusion → Cold Drawing or Cold Rolling → Heat Treatment → Precision Finishing

Its advantages include:

• No weld seam

• More uniform structure

• Good pressure resistance

• Good fatigue performance

• High reliability in demanding service

Typical applications include:

• High-pressure fluid systems

• Heat exchangers

• Vacuum pipelines

• Deep-sea systems

• Flammable or explosive media

Seamless tube is generally the preferred choice when the tube will experience significant pressure, temperature variation, vibration, or cyclic loading.

5. Welded Titanium Tube

Welded titanium tube is generally manufactured by forming titanium strip or plate into a cylindrical shape and joining the seam using an appropriate welding process.

A simplified process is:

Titanium Plate/Strip → Slitting → Roll Forming → Argon Arc Welding → Sizing → Finishing

The main advantages are:

• Shorter production cycle

• Lower production cost

• Better cost efficiency for larger diameters

However, the welded region requires particular attention.

The weld can become a mechanically sensitive area, especially when the component is exposed to:

• High pressure

• High temperature

• Cyclic loading

• Vibration

• Aggressive corrosion

Therefore, welded titanium tube should not simply be considered interchangeable with seamless titanium tube.

For demanding titanium CNC machining and component manufacturing, the tube production method should be specified clearly in the engineering documentation.

6. Titanium Capillary Tube

Titanium capillary tube is a specialized type of seamless tube manufactured through multiple precision drawing operations.

It is generally characterized by:

• Very small outside diameter

• Small internal diameter

• Tight dimensional tolerances

• Precision internal geometry

Ultra-fine titanium tubes may have an outside diameter of 10 mm or less.

Typical applications include:

• Medical instruments

• Sensors

• Laboratory equipment

• Precision fluid systems

• Specialized instrumentation

Because the tube diameter and wall thickness are extremely small, machining and handling require significantly greater precision.

Titanium capillary tubes are generally not intended for high-flow industrial fluid transportation.

7. Titanium Tube Surface Treatment

The internal surface of titanium tube can be just as important as the external surface.

For fluid-handling applications, internal surface quality directly influences:

• Corrosion resistance

• Fluid resistance

• Fouling

• Cleaning

• Service life

Pickling of Internal and External Surfaces

Pickling is a basic surface treatment for many industrial titanium tubes.

A titanium-specific pickling solution can remove:

• Oxide scale

• Surface contamination

• Oxygen-enriched brittle layers

The process helps:

• Improve surface condition

• Reduce localized corrosion risk

• Prepare surfaces for welding

• Remove undesirable oxide layers

However, pickling should not be considered a replacement for polishing or passivation when those processes are specifically required by the application.

Internal Bright Annealing and Internal Polishing

For applications requiring a high-quality internal surface, titanium tubes may undergo:

• Bright annealing under an inert atmosphere

• Mechanical honing

• Internal polishing

The primary objective is to obtain a smoother internal surface.

Benefits include:

• Reduced fluid resistance

• Reduced scaling

• Improved cleanability

• Better internal surface quality

This is particularly relevant for:

• Seawater condensers

• Precision heat exchangers

• Food processing systems

• Medical fluid pipelines

For fluid applications, the internal surface should receive particular attention, even when the external surface has less stringent requirements.

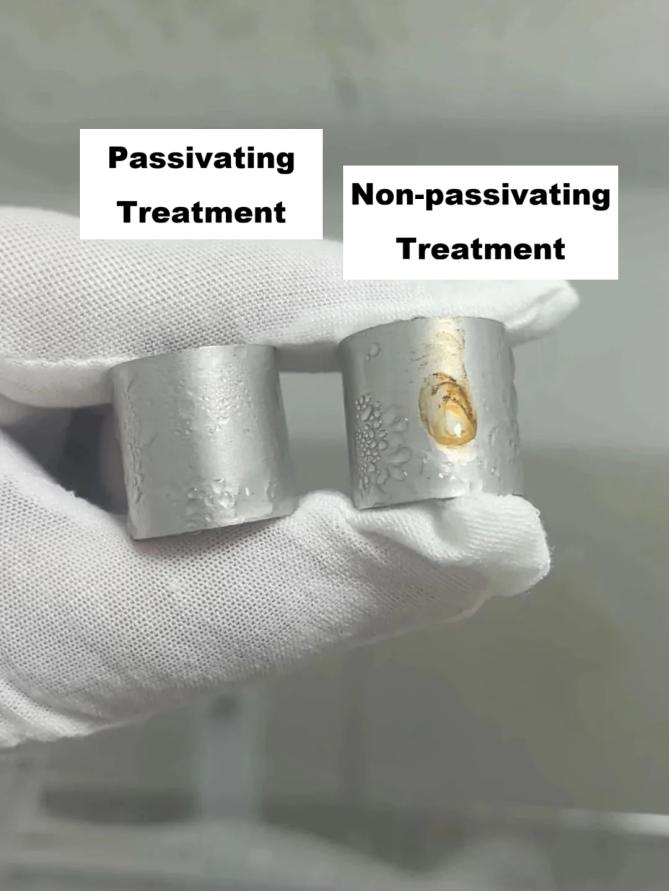

Titanium Tube Passivation

Passivation can chemically stabilize the surface oxide layer and help improve resistance to certain corrosive environments.

It may be considered for:

• Seawater applications

• High-salt wastewater

• Long-term immersion

• Chloride-containing environments

Passivation should be regarded as a corrosion-performance upgrade rather than a universal replacement for other surface treatments.

External Sandblasting

External sandblasting produces a matte surface and can:

• Improve outdoor appearance

• Provide a uniform texture

• Help hide machining marks

• Improve weathering characteristics

Typical applications include:

• Outdoor pipelines

• Marine platforms

• External piping systems

However, abrasive particles must not be allowed to remain inside the tube.

Tube openings should be properly protected and sealed during external blasting.

titanium anodizing

Titanium anodizing uses an electrochemical oxidation process to modify the surface.

It can provide:

• Decorative colors

• Improved surface appearance

• Improved wear resistance

It may be suitable for:

• Small-diameter precision tubes

• Capillary tubes

• Titanium fittings

• Decorative components

It is generally not the primary surface treatment for large fluid-transportation pipelines.

8. TA2 / TA10 vs. TC4 Titanium Tube

Material selection should be based on the actual operating environment.

TA2 / TA10

Commercially pure titanium grades such as TA2 and TA10 are often selected when corrosion resistance is the primary consideration.

Potential applications include:

• Seawater desalination

• Heat exchangers

• Chemical fluid transportation

• Electroplating circulation systems

• Corrosion-resistant pipelines

• Medical fluid systems

TC4

TC4 is selected when mechanical strength and lightweight structural performance are more important.

Typical applications include:

• Aerospace hydraulic tubing

• High-pressure hydraulic systems

• Lightweight pressure-bearing structures

• High-performance mechanical components

However, TC4 should not automatically replace TA2 or TA10 in corrosive fluid applications.

9. Titanium Tube Cutting and Machining

When titanium tube is used as a starting material for CNC machining or component fabrication, cutting and workholding require particular attention.

Cutting

Suitable cutting methods may include:

• Band saw cutting

• Abrasive cutting

• CNC cutting

• Other application-specific cutting methods

After cutting, the tube ends should be cleaned and deburred.

Potential risks include:

• Excessive heat

• Oxygen contamination

• Burrs

• Metallic debris

• Internal-surface damage

High-temperature cutting without appropriate control can cause oxygen contamination and embrittlement near the cut surface.

Debris remaining inside the tube can also affect downstream fluid systems and potentially contribute to internal surface damage.

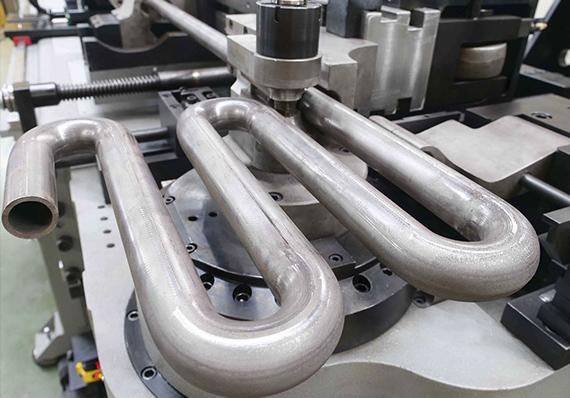

10. Titanium Tube Bending

Titanium tube can be bent, but its springback behavior must be considered during forming.

Key considerations include:

• Material grade

• Tube diameter

• Wall thickness

• Bend radius

• Bending angle

• Workholding

• Residual stress

For large-angle bends, controlled heating may be considered depending on the material and process.

The bending radius should not be unnecessarily small because excessive deformation can result in:

• Local thinning

• Ovalization

• Cracking

• Stress concentration

For demanding applications, stress-relief heat treatment may be considered after bending.

11. Titanium Tube Welding

Titanium welding requires strict atmospheric protection.

During welding, both the external and internal surfaces of the tube should be protected using argon shielding to prevent atmospheric contamination.

The welding process should maintain adequate inert-gas protection throughout the critical high-temperature stage.

A practical visual indicator is weld color.

If the titanium weld becomes:

• Yellow

• Blue

• Purple

• Darkened

it may indicate inadequate shielding and atmospheric contamination.

In such cases, the affected area may require removal and re-welding according to the applicable welding procedure.

After welding, the weld region may also require pickling or other appropriate surface treatment.

Poor shielding can significantly reduce weld ductility and increase the risk of cracking and leakage.

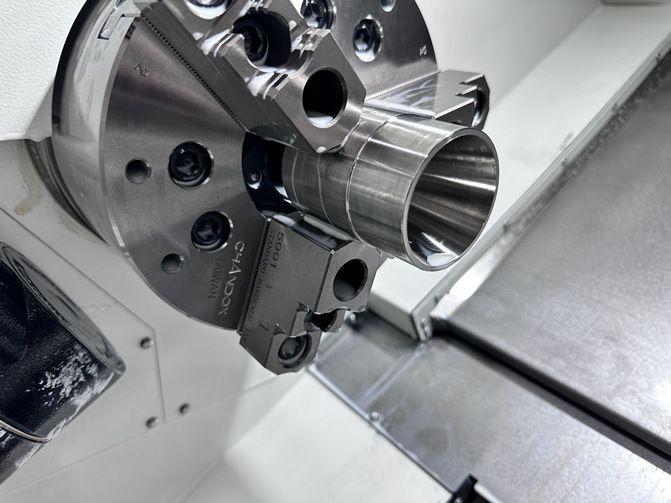

12. Titanium Tube CNC Machining Considerations

Although tubes are already hollow, they can still require CNC machining for precision components.

Typical CNC operations include:

• CNC turning

• CNC milling

• Drilling

• Boring

• Thread machining

• Groove machining

• End-face machining

• Port machining

• Precision finishing

For titanium alloy tubes such as TC4, machining parameters need to account for:

• Low thermal conductivity

• High cutting forces

• Tool wear

• Work hardening

• Vibration

• Thin-wall deformation

For complex tube fittings and titanium components, 5-axis CNC machining may be used to access angled surfaces and complex geometries with fewer setups.

The machining strategy should be designed around the actual tube geometry rather than treating the material like a conventional steel or aluminum tube.

13. Titanium Tube Inspection

Before a titanium tube enters machining or assembly, several inspection items should be considered.

Dimensional Inspection

Check:

• Outside diameter

• Inside diameter

• Wall thickness

• Straightness

• Concentricity

Wall thickness should be measured at multiple points to identify potential eccentricity or uneven wall thickness.

Surface Inspection

Both internal and external surfaces should be checked for:

• Cracks

• Peeling

• Scratches

• Dents

• Corrosion damage

For welded tubes, the weld should be checked for:

• Porosity

• Incomplete penetration

• Surface defects

• Abnormal weld geometry

For seamless tubes, continuous grinding marks that could indicate a repaired or disguised weld should be treated carefully.

Pressure Testing

For pressure-bearing applications, the relevant hydrostatic test report should be available.

For vacuum systems, gas-tightness testing may also be required.

Material Certification

The material should be accompanied by an original material certificate containing relevant information such as:

• Material grade

• Chemical composition

• Mechanical properties

• Batch/heat number

• Applicable standard

For suspicious materials, chemical composition can be verified through material analysis or spectroscopy.

14. Common Problems When Selecting Titanium Tube for Machining

The following issues are particularly important when titanium tube becomes part of a CNC machining or component-manufacturing project.

1. Seamless vs. Welded Tube

Heat exchangers, high-pressure systems, and demanding marine applications may require seamless titanium tubes.

A welded tube should not be treated as equivalent simply because the outside dimensions are the same.

Special attention should also be paid to products where a weld has been ground to imitate a seamless tube.

2. Do Not Specify Only OD × Wall Thickness

A titanium tube specification should also clarify:

• Seamless or welded

• Titanium grade

• Applicable standard

• Internal surface treatment

• Pickling requirements

• Passivation requirements

• Internal polishing requirements

3. High-Chloride Applications

For demanding seawater and chloride environments, TA10 may be considered where appropriate.

Material selection should account for actual chloride concentration, temperature, flow conditions, and exposure time.

4. Thin-Wall Heat-Exchange Tubes

Thin-wall titanium heat-exchange tubes can deform if excessive external clamping force is applied.

Workholding must therefore be carefully controlled during machining and assembly.

5. Heat-Exchange Tube vs. General Industrial Tube

GB/T 3625 heat-exchange titanium tube is not simply interchangeable with general industrial titanium tube under GB/T 3624.

Heat-exchange applications can have more stringent requirements for:

• Internal diameter

• Wall thickness

• Dimensional accuracy

• Internal surface roughness

6. TC4 Is Not a Universal Replacement for TA2

TC4 provides higher strength, but higher strength does not automatically mean better corrosion performance.

For corrosive fluid systems, the titanium grade should be selected based on the actual operating environment.

15. How Titanium Tube Selection Affects CNC Machining

For a CNC machining manufacturer, material selection should follow the component requirements rather than the other way around.

A practical selection sequence is:

1. Determine the Application

↓

2. Determine Pressure / Temperature / Corrosion Conditions

↓

3. Select Seamless or Welded Tube

↓

4. Select Titanium Grade

↓

5. Determine OD / ID / Wall Thickness

↓

6. Define Internal and External Surface Treatment

↓

7. Develop CNC Machining Process

↓

8. Perform Dimensional and Functional Inspection

This approach prevents the common mistake of selecting a material based only on outside diameter and wall thickness.

16. Key Titanium Tube Selection Rules

For practical engineering applications, several basic rules can be followed.

Normal-Pressure Static Applications

Welded titanium tube may be considered when the operating conditions are relatively mild and cost optimization is important.

Heat Exchangers, High Pressure and Marine Applications

Seamless titanium tube is generally preferred when pressure, cyclic loading, vibration, or demanding corrosion conditions are involved.

High-Chloride Seawater Conditions

A suitable commercially pure titanium grade such as TA10 should be evaluated rather than automatically selecting TA2.

Precision Applications

Internal surface quality can be just as important as material grade.

Consider:

• Internal polishing

• Internal roughness

• Cleanliness

• Dimensional tolerance

• Straightness

CNC Machining

The machining process should account for:

• Wall thickness

• Tube rigidity

• Workholding pressure

• Cutting force

• Tool accessibility

• Internal geometry

Titanium tube is an important material form for producing high-performance components used in aerospace, chemical processing, marine systems, heat exchangers, medical equipment, hydraulic systems, and other demanding applications.

From a CNC machining and Titanium Alloy Machining perspective, titanium tube selection should not be based solely on dimensions.

The manufacturing method—seamless, welded, or capillary—the titanium grade—TA2, TA10, TC4, etc.—the applicable standard, wall thickness, internal surface quality, surface treatment, and operating environment can all influence the performance of the final component.

For precision titanium components, machining considerations are equally important. Titanium's low thermal conductivity, high strength, tool-wear characteristics, and tendency toward deformation or vibration require carefully controlled cutting parameters, workholding, tooling, and inspection.

For complex titanium tube components, CNC turning, CNC milling, and 5-axis CNC machining can be combined to produce accurate interfaces, ports, mounting features, and complex geometries.

Ultimately, the objective is not simply to select or purchase a titanium tube. It is to select the appropriate titanium material and manufacturing condition and then convert it into a precision CNC machined titanium component that meets the required dimensional, mechanical, corrosion-resistance, and functional requirements.
